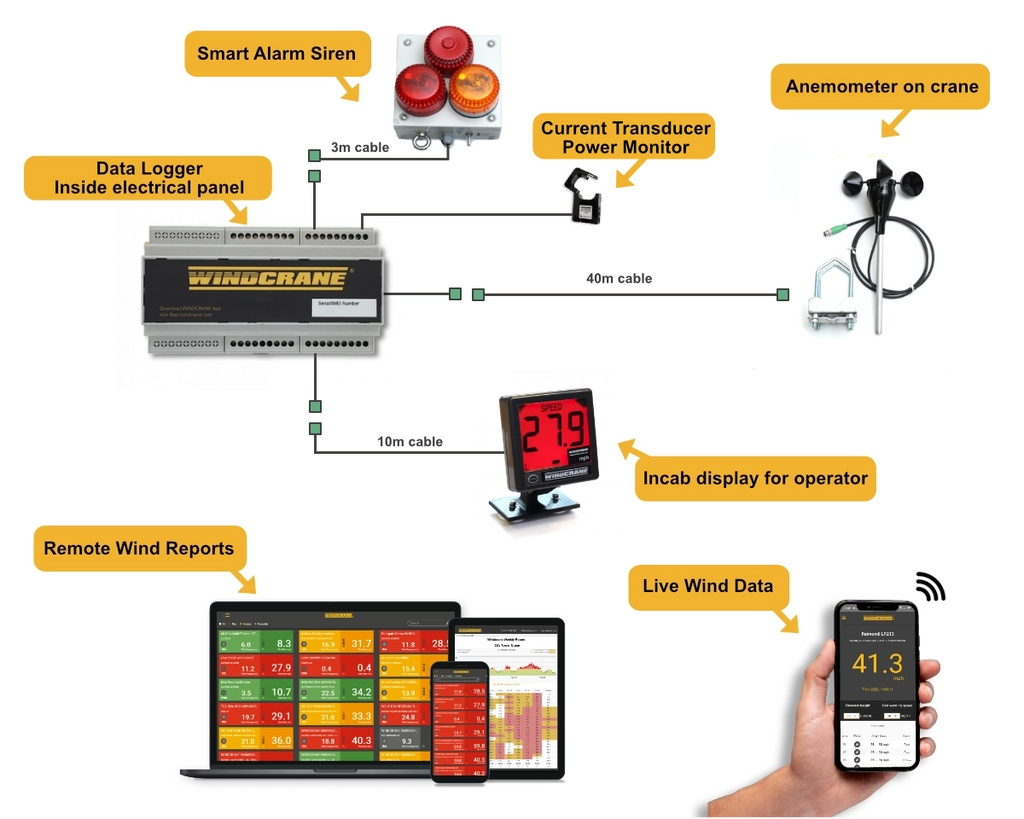

WINDCRANE Mini is a small, compact and tough wind monitoring system for outdoor and construction. Supplied with anemometer, power supply, heavy duty 40m cable and optional LCD display, situated inside the cabin.
WINDCRANE DATA SERVICE
Enclosure/Mechanical Compact weatherproof case (IP67 rated) with loops for mounting straps or lanyards M12 connector pigtail for sensor
Dimensions and weight: 220 x 130 x 65 mm (LxWxH incl cable glands) 0.9 0.9 kg approx (incl mains AC PSU)
Mounting 2no heavy-duty straps through enclosure loops (110W x 115H mm centres)
Operating Temperature: -30°C to +60°C
Power Pre-wired inline mains power supply for 100-240VAC, 10W max consumption, with 3m cable and 230V plug
Sensor Options 1x wind speed anemometer (pulse/switch).

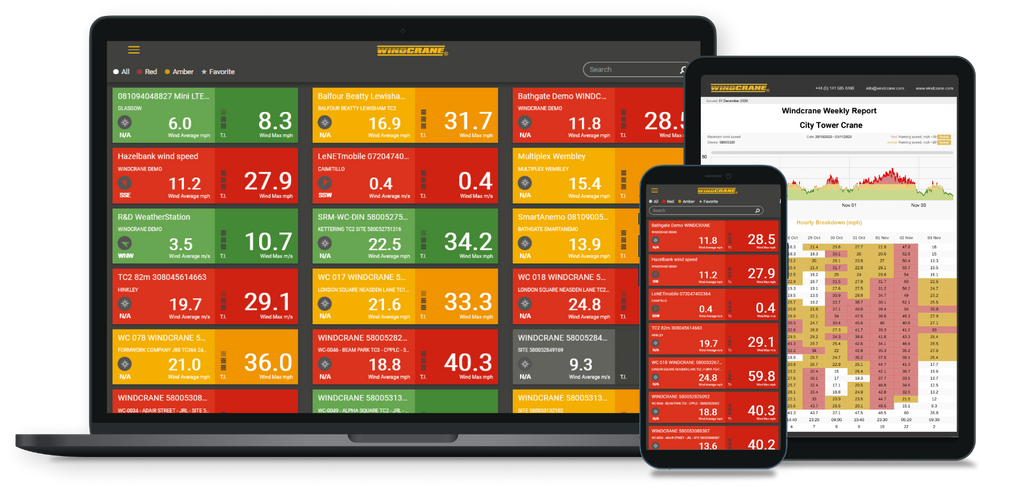

Data Connectivity Built-in cellular connectivity with internal antenna and worldwide coverage Data automatically transmitted to WINDCRANE web portal and app
Accessories/Options Live data in-cab display module - second-by-second wind speed Pre-wired to logger enclosure on 5m cable
Download WINDCRANE Iot Wind Data Service
Download WINDCRANE Mini Tech Spec
Download WINDCRANE Mini Install Guide
Or you can find more information at its dedicated website www.windcrane.com
Suitable for any tower crane, construction site or outdoor application providing highly accurate and reliable real-time wind monitoring.

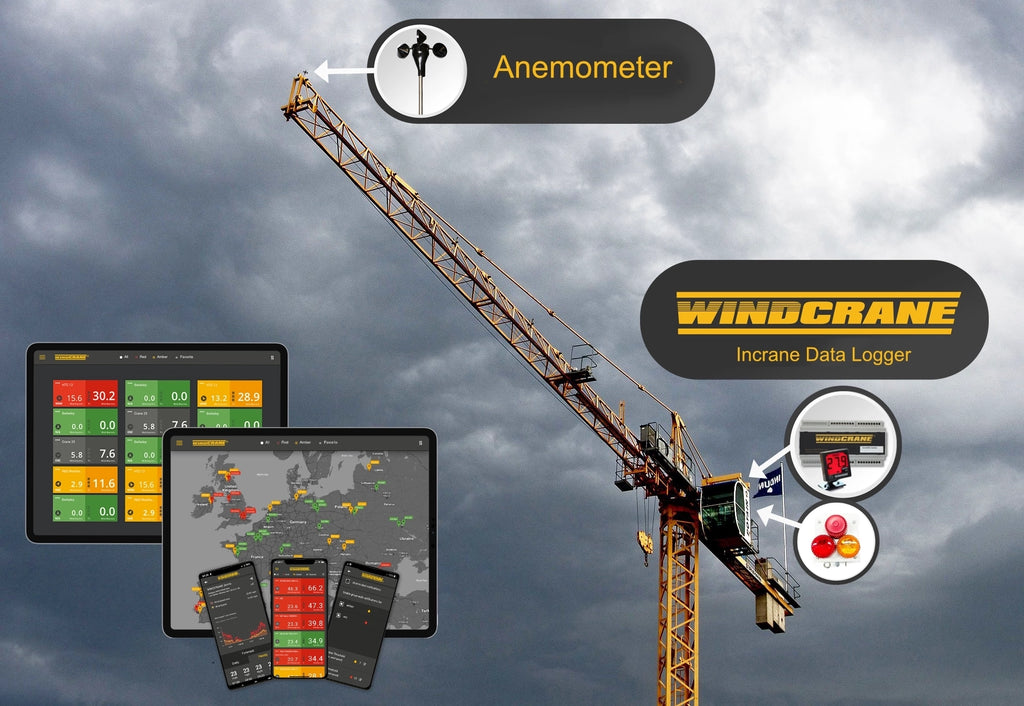

Tower cranes are a common fixture at any major construction site. All tower cranes should be fitted with a wind speed anemometer system to ensure safer work operations and assist with weather disputes using accurate crane height wind speed data.
For more info on Tower Cranes monitoring, please visit our page company website.
Outdoor Events Monitoring System
For more info on Outdoor Events wind monitoring, please visit our page company website.
