nuovo LelWL Windlogger

£380.00

This product will be despatched within 10-15 working days

---- QUESTIONS AND ANSWERS ----

Categoria: anemometro, datalogger, LeWL logger vento, LeWL windlogger, vento, misurazione del vento

Il nuovoLeWL WindLogger è stato prodotto a partire dal 2008. Abbiamo venduto migliaia di questi piccoli wind data logger in tutto il mondo ed hanno un'eccellente reputazione in termini di stabilità, accuratezza e durata.

Il nuovo WindLogger è stato redisegnato per dare maggiori prestazioni, grazie alla piccola ma entusiasta community del vento. Abbiamo ascoltato il loro feedback e realizzato notevoli migliorie:

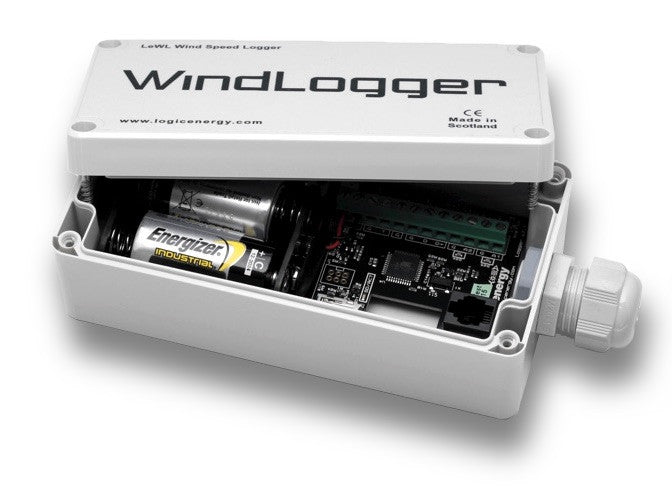

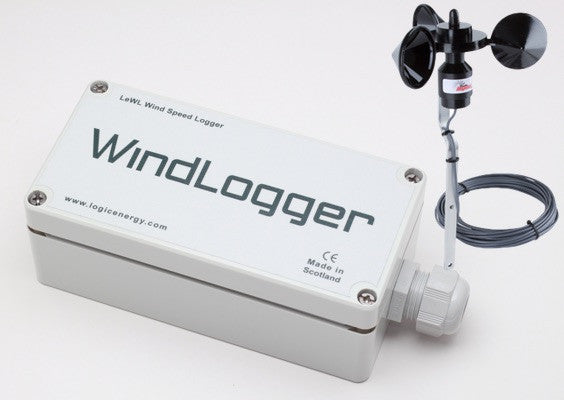

Una installazione molto semplice, connetti l' anemometro Davis nel connettore interno 6P4C. Se usi qualche altro tipo di anemometro, va bene lo stesso. Lo puoi connettere direttamente al blocco di connessione in entrata del sensore.
Individuazione automatica dell'anemometro da parte del sistema. Il nuovo WindLogger ti farà sapere se c'è un anemometro connesso e funzionante, prima di lasciare il sito.
Opzione per sensore di temperatura esterno
Monitor batteria integrato
Eccezionale durata della batteria fino ad 1 anno con un intervallo di logging di 1 minuto

Caratteristiche
- Registrazione della velocità del vento da due anemometri simultaneamente - Velocità media del vento, velocità della raffica e deviazione standard (turbolenza) e wdirezione
- Input sonda temperatura esterna
- Fino ad un anno di vita della batteria registrando dati ogni minuto o fino a 3 anni di durata con una registrazione dei dati ogni 10 minuti. (10 secondi disponibili solo ai fini test)
- Dati sovraimpressi registrati con memory card micro-SD estraibili in formato CSV per uso con Excel o software di analisi del vento. Include tutti i valori del sensore e stato della batteria.

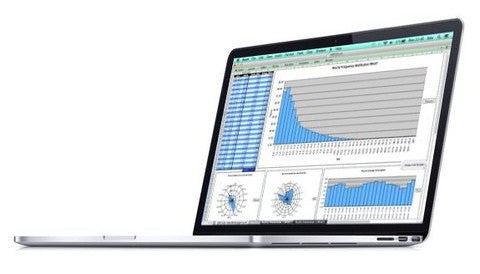

- Strumento di analisi semplice incluso. (Template Excel editabile o Java app)
- Contenitore completamente impermeabile IP65
Entrata memory card SD
- File in formato standard CSV ASCII , archiviati in file mensili
- Registro dati medi, deviazione standard e valori massimi
- Dati registrati con data e ora sovraimpressi
- card microSD flash FAT32
Quattro entrate per sensori

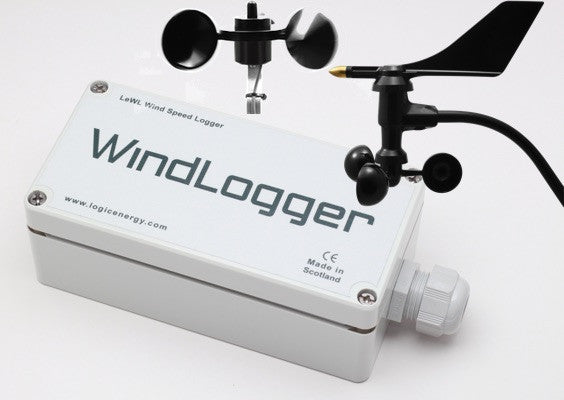

- Connessione di due anemometri alla volta (2 entrate digitali)
- Supporta interruttore dry contact (volt-free), comando Hall effect, open collector o entrata logic level 3V della velocità del vento

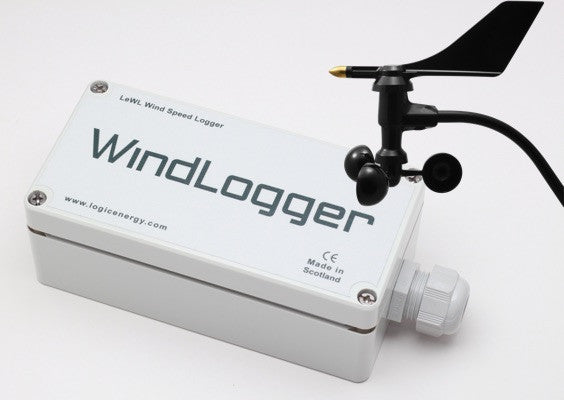

- Sensore per la direzione del vento tipo potenziometro, 1k - 20k ohms.
- Supporto per sensore di temperatura esterno
Porta seriale per interfaccia con PC
- RS232 compatibile per leggere i valori durante il data logging
- Menù setup attraverso porta seriale o memory card SD
- 4800bps
- Setup fattore sensore attraverso RS232

Informazioni meccaniche
- Temperatura di funzionamento da -40*C a + 70*C ( Verificare con noi in primo luogo per le applicazioni meteorologiche estreme )
- Contenitore IP65 sigillato con pressacavo per cavi del sensore
- Dimensioni: 160x80x55mm
- Peso: 450gm batterie incluse

Scarica il manuale e la guide veloce qui o prendi visione delle F.A.Q. per WindLogger e video

From Waste To Wind

We purchased Lewl Windlogger for our projects after technical support professionally explained what the error margin of the standard anemometer is compared to a calibrated one. WE are happy with the product and want to order more units.

Atacama Desert

Studying the aerosol/particulate material deposition for Atacama Desert, we set a west-east transect of dust traps starting close to the Pacific Ocean until the Andes Cordillera. To study the atmospheric deposition and its temporal-spatial dynamics we purchased 3 wind trackers close to the dust traps so we analyse the wind speed and direction. Excellent customer support with our first international purchase out of Chile.

Monitoring wind in Switzerland

The wind logger is installed near a cow barn, where I rented the roof, to put a 152 kWp PV-plant. Thus, it would be easy to connect a future wind generator with the electricity grid. To see if the wind is good enough to put a small wind turbine generator system in this area. I am loggin the wind for one year started in February 2023. Then I’ll decide to ask the local authority for permission. I installed the wind logger on a 12-meter pole. Looks like the wind speed in this area of Switzerland is not very promising. Although during winter wind is normally stronger, hence having windlogger is great decision.

thanks a lot for your commitment!

The set up of the wind logger was easy and worked from beginning as promised. My problem to import the CSV file in Excel, was quickly solved by the Windlogger team.

PERFECT customer service

When was needed, I have received all instructions regarding reading the data. Thank you very much for your efforts and the PERFECT customer service!

1 2

Customer Questions

Ask Question

Q: Can this wind logger measure temperature too?

A: Yes, it comes pre-configured to use this temperature probe: https://www.windlogger.eu/collections/sensors/products/temperature-thermistor We also recommend using a solar radiation shield if you intend to use the temperature probe under direct Sun light: https://www.windlogger.eu/products/radiation-shield-for-sensors

Q: Hello,I am interested in the LeWL setup for ecology research regarding wind-use in birds. I am wondering what the sensitivity is of the anemometer - for both high- and low- wind-speeds? Thank you,Kris

A: There're many many sensor options, it is probably best to contact us with more details about your requirements. In the meantime, have a look at these: https://www.windlogger.com/collections/sensors

Q: Hi guys,Do you have a MAC OS setup program for the LEWL by any chance?

A: Unfortunately not, however the setup is done using a simple text file that can be edited manually. When the new file is found by the data logger, then it loads its configuration. This process is described in the wind logger manual.

Q: Hi,How many days to reach buyer in Manila, Philippines. İ'd like to buy wind logger plus anemometer and wind vane.Thanks. Hope you response.

A: Hello, we usually dispatch within 2 working days. You should expect to have your items with you within a week. Feel free to contact us directly if you need more details.

Q: Is the sensor compatible with Anemometer Young?

A: Hello, it depends which model. You would need to use one with a pulse output.

Q: Hello,The wind direction angle recorded by these devices represents the direction the wind is blowing FROM? Does a 90º direction mean wind blows westward? Thank you, I purchased 4 anemometers of yours and they are just fine!

A: Yes, that is correct. The wind vane points where the wind is coming from, in the case of recording a 90º, the wind would be comfing from the East. 90º is East, and 270º would be West.

Q: I am interested in getting a new LeWL WindLogger, Could you tell me if the equipment has calibration report and what class it is?

A: Calibration certificates are done for the anemoeters (wind sensors). In this case, depending on the size of your project you may need a 1st Class MEASNET anemometer. Feel free to contact us with details, we will be happy to suggest the best option.
