WindLogger con due anemometri e banderuola

£660.00

This product will be despatched within 10-15 working days

---- QUESTIONS AND ANSWERS ----

Categoria: anemometro, datalogger, LeWL logger vento, vento, misurazione del vento, banderuola

Questo kit presenta la caratteristica del nuovo WindLogger di due entrate per anemometri capaci di registrare i dati simultaneamente; in questo modo puoi misurare la velocità del vento a due altezze differenti.

A cosa serve? Principalmente per calcolare il wind shear o estrapolare la velocità del vento a differenti altezze. Immagina di voler sapere la velocità del vento a 23 metrima il tuo albero solo misura 18 metri. Puoi connettere l'anemometro superiore a 18 metri e l'altro a 12 metri (per esempio). Con questi due valori puoi estrapolare la velocità del vento a 23 metri senza doverlo misurare fisicamente. Considera solo che non è raccomandabile estrapolare più di 2/3 del punto superiore.

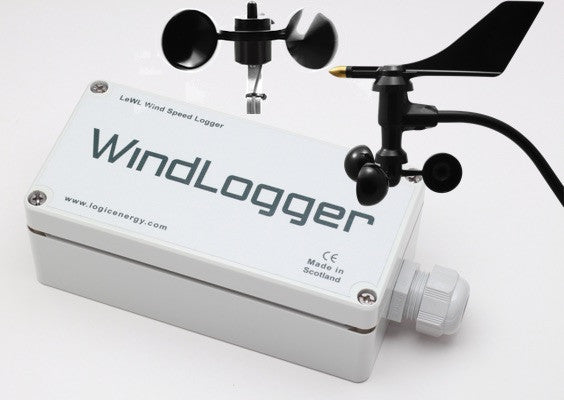

Questo kit presenta tutte le caratteristiche di un sistema professionale di monitorizzazione del vento ma a un miglior prezzo. Il kit viene fornito di:

• nuovo LeWL WindLogger

• 1 x anemometro combinato con banderuola, con 13 metri di cavo e supporto per l'albero

• 1 x Anemometro Vortex con 10 m di cavo sensore

• Guida rapida installazione

• Batterie di livello industriale e memory card microSD.

Se hai bisogno di maggiori specificazioni tecniche riguardo al nuovo WindLogger e ai sensori, fai click sul link. PerF.A.Q generiche, fai click qui.

Review left on the WindLooger with Anemometer & Wind Direction product, by Robert Holl, “Monitori...

The wind gauge is working very well. Our trainees built a 10-meter-high steel tower, and the measuring equipment has been hanging there and operating reliably for a year. The measurements provided us with the information we needed. We are now changing the battery for the first time after a year, which is also great.

Review left on the WindLogger product, by Bram Peirs, "From Waste To Wind"

We purchased Lewl Windlogger for our projects after technical support professionally explained what the error margin of the standard anemometer is compared to a calibrated one. We are happy with the product and want to order more units.

Review left on the WindLogger product, by Beat Hofer, "Monitoring wind in Switzerland"

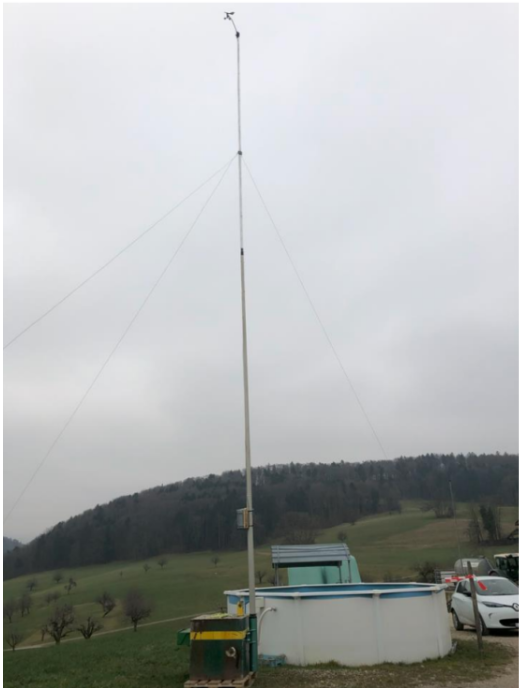

The wind logger is installed near a cow barn, where I rented the roof, to put a 152 kWp PV-plant. Thus, it would be easy to connect a future wind generator with the electricity grid. To see if the wind is good enough to put a small wind turbine generator system in this area. I am loggin the wind for one year started in February 2023. Then I’ll decide to ask the local authority for permission. I installed the wind logger on a 12-meter pole. Looks like the wind speed in this area of Switzerland is not very promising. Although during winter wind is normally stronger, hence having windlogger is great decision.

Review left on the WindLogger product, by Beat Hofer, "thanks a lot for your commitment!"

The set up of the wind logger was easy and worked from beginning as promised. My problem to import the CSV file in Excel, was quickly solved by the Windlogger team.

Review left on the WindLogger product, by Franko Arenas Díaz, "Atacama Desert"

Studying the aerosol/particulate material deposition for Atacama Desert, we set a west-east transect of dust traps starting close to the Pacific Ocean until the Andes Cordillera. To study the atmospheric deposition and its temporal-spatial dynamics we purchased 3 wind trackers close to the dust traps so we analyse the wind speed and direction. Excellent customer support with our first international purchase out of Chile.

1 2

Customer Questions

Ask Question

Q: What is the closest interval this logger can record?

A: 10 seconds, we recommend this setup only for short periods of time as it generates a lot of data and consumes much more battery. The other options are 1 minute and 10 minutes recording. The sampling rate is discrete.

Q: Dear Sir/ Madame,i would like to ask how long shipping takes to Vienna/Austria for this partikular Product? Is the Product in stock?best regardsRoman Flores Espinoza

A: Usually 2 to 4 days.

Q: We need to get longer cables since our installation will be on an existing 22m pole. Do you have longer cables available within this set, i.e. 25m (including reserve)? Thanks and best regards!

A: The standard cable is 13m long. We don't usually recommend extending the cable as it can be an entry point for water ingress if it has not been terminated right.
